Roof Ventilation 101: Essential Venting Methods For Your Home

Roof ventilation is one of those “boring until it’s expensive” topics. When it’s working, your attic stays drier, your roof lasts longer, and your HVAC system
doesn’t have to fight a sauna that happens to be sitting on top of your house. When it’s not working, you might meet its greatest hits: mystery mold, warped roof
decking, ice dams, and shingles that age like bananas.

This guide breaks down how roof ventilation works, the most common venting methods, how to size a system, and the classic mistakes that sabotage airflow (including
the “I added more vents so it must be better” trap). We’ll keep it practical, specific, and lightly funnybecause nothing says “fun” like talking about moisture
migration at 10 p.m. when you notice a water stain on the ceiling.

What Roof Ventilation Actually Does (And What It Can’t Do)

A vented roof/attic system is basically controlled breathing for your home. It helps:

• Move heat out of the attic in summer, reducing extreme attic temps that can bake roofing materials.
• Move moisture out in colder seasons, lowering the chance of condensation that can lead to mold, damp insulation, or wood damage.
• Support winter roof durability by keeping roof temperatures more uniform (one factor that can reduce ice-dam risk).

What ventilation doesn’t do: it won’t fix a leaky ceiling plane by itself. If warm, moist indoor air is pouring into the attic through gaps around lights,
attic hatches, plumbing penetrations, or duct chases, ventilation becomes a band-aid on a much bigger paper cut.

The Basic Principle: Intake Low, Exhaust High

Effective attic ventilation relies on a simple airflow path: fresh air enters low (usually at the soffits/eaves) and exits high
(near the ridge). This uses natural forces:

• Stack effect: warm air rises and wants to escape at the top.
• Wind effect: wind creates pressure differences that push air in on one side and pull it out on another.

The goal is not “maximum holes.” The goal is continuous, unobstructed flow across as much of the underside of the roof deck as possiblewithout
letting insulation or random attic clutter block the pathway.

Meet the Key Term: Net Free Vent Area (NFVA)

When you shop for vents, you’ll see NFVA (or NFA). That’s the actual open area air can move through after screens, louvers, and design features
are considered. Two vents can be the same physical size and have very different NFVA.

Translation: don’t size your ventilation by eyeballing the vent cover like it’s a decorative throw pillow. Use the NFVA rating.

How Much Ventilation Do You Need?

Building codes commonly use a minimum ratio based on attic floor area:

• 1:150 rule: 1 square foot of NFVA for every 150 square feet of attic area.
• 1:300 rule (allowed in certain conditions): 1 square foot of NFVA for every 300 square feet of attic area, typically when moisture control
  measures are met and vent placement follows specific distribution guidelines.

Many guidelines also aim for a roughly balanced split between intake and exhaust (often close to 50/50), with some building-science practitioners preferring
slightly more intake than exhaust to reduce the chance of the attic pulling conditioned air from the living space.

A quick sizing example (with real numbers)

Let’s say your attic floor area is 1,200 sq. ft.

1. If you use the 1:300 guideline: 1,200 ÷ 300 = 4 sq. ft. NFVA total.
2. Convert to square inches (because vent specs are often in sq. in.): 4 × 144 = 576 sq. in. NFVA total.
3. Split it between intake and exhaust. A simple balanced approach: 288 sq. in. intake + 288 sq. in. exhaust.
   A “more intake” approach might look like 60% intake / 40% exhaust (346 sq. in. intake / 230 sq. in. exhaust).

Now you match those targets to the NFVA ratings of the vents you’re actually installing.

Essential Venting Methods: The Big Categories

Roof ventilation systems are usually built from two parts: intake and exhaust. Let’s walk through the common options and where
each shines.

Intake Vent Options (Where Air Comes In)

1) Soffit vents (continuous or individual)

Soffit vents are installed under the eaves and are the workhorse intake method for many homes. Continuous soffit venting (a long, uninterrupted
vent strip) tends to provide more even intake than a few scattered vents.

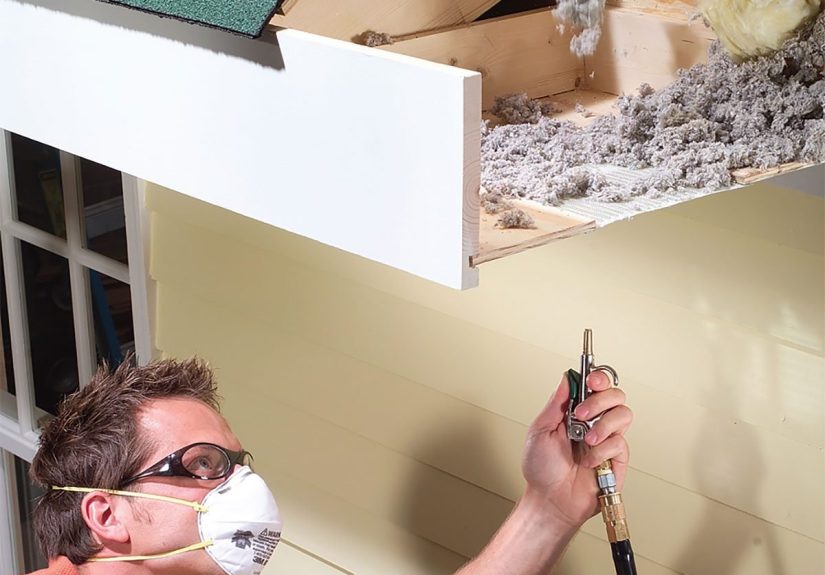

Pro tip: the most common “DIY insulation upgrade mistake” is blocking soffit vents with insulation. That turns your carefully planned air pathway into a dead end.
If you’re insulating an attic floor, use baffles/rafter vents to keep the soffit-to-attic airflow channel open.

2) Eave vents (edge intake / drip-edge style)

Some roofs use intake vents installed at the lower roof edge. These can help when soffit venting is limited, but they still need a clear air pathway up into the
attic/rafter bay. Think of them as another way to feed the system, not a magic workaround for blocked airflow.

3) Gable vents as intake (sometimes)

Gable vents can act as intake or exhaust depending on wind. They’re common on older homes, but they don’t always ventilate the underside of the roof deck evenly.
They can still play a role, but they’re rarely the most controlled, consistent intake strategy compared to soffits.

Exhaust Vent Options (Where Air Gets Out)

1) Ridge vents

A ridge vent runs along the peak of the roof and lets warm, moist air escape at the highest pointexactly where it wants to go anyway. Paired
with soffit intake, ridge vents can create a smooth “low-in/high-out” flow pattern.

Ridge vents are especially popular because they’re low-profile and can provide continuous exhaust across the roof peak. The key is sizing: a ridge vent is only as
effective as its NFVA, the ridge opening beneath it, and the intake feeding it.

2) Static roof vents (box vents / roof louvers)

These are the classic “little metal (or plastic) hats” on the roof. They can work well when properly sized and placed high on the roof. They’re often used when a
roof has a short ridge line (like many hip roofs) and ridge vent length alone can’t provide enough exhaust NFVA.

3) Turbine vents (“whirlybirds”)

Turbine vents spin with wind and can increase exhaust under the right conditions. They’re common, and they can move air, but they still need good intakeand they
don’t guarantee even ventilation across the roof deck. Consider them a tool, not a personality trait.

4) Gable vents as exhaust

Gable vents can exhaust hot air, particularly when wind helps. But if you’re trying to create consistent soffit-to-ridge airflow, gable vents can sometimes
interfere by letting air shortcut across the attic instead of washing the underside of the roof deck.

5) Powered attic fans (electric or solar)

Powered fans can move a lot of airbut they can also cause problems if your attic floor isn’t well air-sealed. A strong fan may pull conditioned air from the
living space into the attic through leaks, which can increase energy use and make your AC work harder.

If you’re considering a powered fan, treat air sealing as non-negotiable, confirm you have adequate intake, and think through where the fan is
pulling replacement air from. (If the answer is “my air-conditioned hallway,” that’s a clue.)

The “Don’t Do This” Hall of Fame: Ventilation Mistakes That Break the System

Mixing exhaust vent types in the same attic

Combining multiple exhaust styleslike a ridge vent plus a powered fan or ridge vent plus several box ventscan create a short circuit where one
exhaust vent starts pulling air from another exhaust vent instead of from the soffit intake. That reduces whole-attic airflow and can invite weather infiltration
in the wrong places.

Putting intake too high (or exhaust too low)

If intake vents are installed too high up the roof, you lose the “low-in” part of low-in/high-out. If exhaust is too low, it may pull air from nearby vents
instead of drawing across the attic.

Blocking soffits with insulation

This is incredibly common. If you can’t see daylight through the soffit vent because it’s buried under insulation like a fossil, airflow is done for the day.
Use baffles (rafter vents) to maintain a channel from the soffit up to the attic.

Skipping air sealing and blaming the vents

If warm, moist indoor air leaks into the attic, you can end up with condensation problems even if you “have vents.” Seal major leakage paths firstattic hatch,
top plates, penetrations, recessed lights (as applicable), and duct/shaft openingsthen verify ventilation.

Roof Design Examples: Choosing the Right Venting Method

Example 1: A simple gable roof (classic ridge line)

Best-case setup: continuous soffit intake + ridge vent exhaust. This gives a straightforward airflow path and tends to ventilate evenly along the
roof deck.

Example 2: A hip roof (short ridge line)

Hip roofs often don’t have enough ridge length to meet exhaust NFVA needs with ridge vent alone. Options include:

• Ridge vent where possible + properly sized static roof vents near the peak (as a single, planned exhaust strategynot random add-ons).
• Extra attention to intake, because inadequate intake can make any exhaust strategy underperform.

Example 3: Cathedral ceilings and tight rafter bays

Cathedral ceilings can be trickier because the “attic” is essentially a skinny rafter channel. If you’re building a vented assembly, you need a
continuous air channel (often created with baffles) from the soffit up to an exhaust point (ridge vent or high roof venting).

In some situations, an unvented roof assembly may be used instead (using air-impermeable insulation strategies and careful moisture control).
This is a design decision that should follow local code and building-science best practices.

Vented vs. Unvented Attics: A Quick Reality Check

Most homeowners think the only “correct” attic is a vented attic. In reality, both approaches exist:

Vented attic (common)

• Insulation is typically at the attic floor (ceiling plane).
• Attic stays outside the thermal envelope.
• Ventilation removes heat and moisture.

Unvented/conditioned attic (strategic option)

• Insulation is at the roof deck (roofline), bringing the attic into the building envelope.
• Can reduce HVAC losses when ducts and equipment are in the attic.
• Requires a high degree of airtightness and correct insulation strategy for condensation control.

Unvented designs can offer benefits in specific climates or risk zones (for example, reducing the pathways for wind-driven rain or embers), but they are not a
casual weekend project. If you’re not 100% sure what assembly you have, default to assessing and improving the existing system rather than “switching philosophies”
midstream.

A Simple Homeowner Checklist to Evaluate Your Roof Ventilation

1. Identify your intake: Do you have soffit vents, eave vents, or something else feeding air in low?
2. Identify your exhaust: Ridge vent, box vents, turbines, gables, powered fan?
3. Confirm you’re not mixing exhaust types above one continuous attic space (unless specifically engineered).
4. Check for blocked soffits: Insulation should not cover soffit vents. Install baffles if needed.
5. Look for moisture clues: Rusty nail tips, damp insulation, musty smell, or staining on the roof deck can indicate moisture problems.
6. Air seal the ceiling plane: Especially around attic access points and major penetrations.
7. Confirm bathroom/kitchen exhaust fans vent outside (not into the attic).
8. Use NFVA for sizing rather than counting vents like they’re Pokemon.

Real-World Roof Ventilation Stories and Lessons (Experience-Based Examples)

The stories below are “composite” homeowner-and-contractor scenarioscommon patterns people run into when they start chasing comfort issues, high bills, or roof
damage. If any of these sound familiar, you’re not alone (and yes, your attic has probably been quietly judging you).

Story 1: “We added a powered fan and somehow the house got hotter.”

A homeowner in a humid summer climate installs a powered attic fan after hearing it will “pull the heat out.” The fan is strong. The attic does feel breezier.
But the upstairs bedrooms get stuffier, and the electric bill goes up. The culprit? The attic floor wasn’t well sealed, and soffit intake was partially blocked.
The fan needed makeup air, so it started pulling cool, conditioned air from the house through every little gaparound light fixtures, attic stairs, and ceiling
penetrations. The AC worked harder to replace that lost cool air, and the attic fan basically became an expensive way to air-condition the attic. The fix wasn’t
“a bigger fan.” It was air sealing + restoring intake + confirming a passive venting path.

Story 2: “We have vents. We also have mold. Explain?”

Another homeowner sees gable vents on both ends of the attic and assumes ventilation is handled. In winter, they notice a musty odor and occasional frost on the
underside of the roof deck. The investigation finds warm indoor air leaking into the attic from an unsealed attic hatch and gaps around a bathroom exhaust duct.
The gable vents weren’t enough to consistently flush moisture from the roof deck areaespecially on calm days. Once the ceiling plane was sealed, the bathroom fan
duct was corrected to terminate outdoors, and soffit-to-high exhaust was improved, the attic dried out and the odor disappeared. The lesson: ventilation helps,
but air leaks feed the moisture problem.

Story 3: “Ice dams every winterso we added more roof vents.”

In a cold-snowy region, a family battles ice dams year after year. The first attempt is adding extra roof vents near the middle of the roof. It doesn’t help much.
Why? Ice dams are usually tied to a warm roof deck and uneven roof temperatures. The real breakthrough comes from a three-part approach: sealing attic air leaks
(especially around recessed lights and the attic access), improving insulation coverage out to the eaves, and installing baffles to keep airflow open from soffits
up to the high exhaust. Once the roof deck stayed colder and more uniform, ice dam severity dropped dramatically. The lesson: more vents without a clear airflow
pathway and air sealing is like adding more doors to a house that’s locked from the inside.

Story 4: “Our hip roof has a ridge ventbut the attic still cooks.”

Hip roofs often have limited ridge length. A homeowner had a ridge vent installed during a reroof, but the ridge was short and the attic still hit extreme summer
temperatures. Instead of mixing a bunch of exhaust styles at random, the solution was planned: ensure continuous soffit intake (unblocked, properly baffled),
then add an exhaust method appropriate for the roof geometry to meet the target NFVA. Once intake was boosted and exhaust was correctly sized, attic temperatures
stabilized. The lesson: ridge vents are greatbut only when the roof design provides enough ridge length and the intake is there to feed them.

Story 5: “We upgraded insulation and accidentally suffocated the attic.”

This one is extremely common: a homeowner adds blown-in insulation for energy savings. Comfort improvesbriefly. Then they notice moisture stains and a mildew
smell. The blown insulation drifted into the eaves and blocked soffit vents. Airflow dropped, moisture lingered, and the attic got damp. The fix was straightforward:
install insulation baffles (rafter vents), add an insulation dam at the top plate where needed, pull back insulation from soffit areas, and restore intake. The
lesson: insulation and ventilation are teammates, not rivals. If one tackles the other, your attic loses.

The theme across these experiences is consistent: the “best vent” is the one that fits your roof design, is sized using NFVA (not guesswork), and is paired with
clean intake pathwaysplus good air sealing and insulation. If you treat roof ventilation as a whole system instead of a single product, it tends
to stop being mysterious and start being… predictably boring. Which is the highest compliment your roof can receive.

Conclusion

Roof ventilation is less about installing “a vent” and more about building a balanced airflow path: intake low, exhaust high, sized correctly,
and protected from common failure points (blocked soffits, mixed exhaust vents, and leaky ceilings). Nail the basicsNFVA sizing, proper vent placement, baffles,
and air sealingand your attic will stay drier, your roof will be happier, and your HVAC won’t feel like it’s paying rent in a volcano.
